Methodologies for studying protein co-evolution

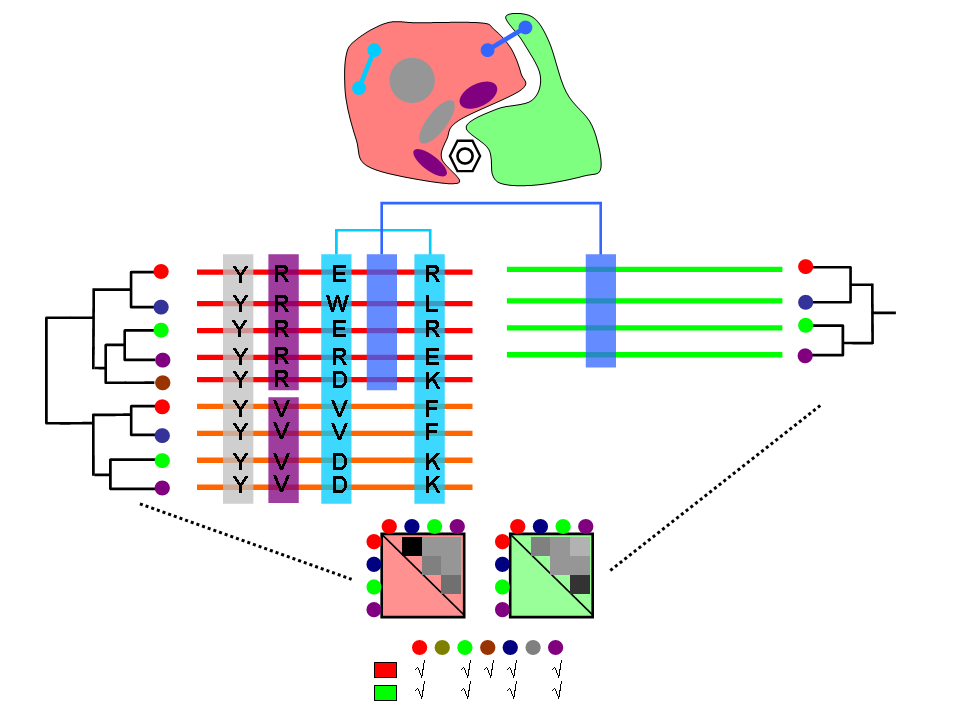

Co-evolution, which can be defined as interdependence of evolutionary histories, is a fundamental part of evolutionary theories from the times of C. Darwin himself. Inter-species co-evolution and co-adaptation is known to have a large effect on the evolutionary paths and characteristics of the involved organisms. More recently, co-evolutionary concepts have been brought to the molecular level. The evolution of many genes/proteins is not independent but entangled to that of others. The same happens at a lower level for individual residues within proteins. Molecular co-evolution can be due to specific co-adaptation between the two co-evolving elements, where changes in one of them are compensated by changes in the other, or by a less specific external force affecting the evolutionary rates of both elements in a similar magnitude. In both cases, independently of the underlying cause, co-evolutionary signatures between genes/proteins serve as markers of physical interactions and/or functional relationships. For this reason, a plethora of computational methods emerged for studying co-evolution at the protein or residue level so as to predict features such as protein-protein interactions, residue contacts within protein structures and protein functional sites. Co-evolution allows proteins to change while maintaining their interactions and, consequently, it plays a very important role in key biological systems. For this reason, the application of those co-evolution inspired methodologies allowed to gain insight into de functioning of these systems.

More information

  • David Juan, Florencio Pazos and Alfonso Valencia (2013). Emerging methods in protein co-evolution. Nature Reviews Genetics. 14(4):249-261.
    [PubMed:23458856] [HTML] [PDF]
  • Available co-evolution related methods

    Category

    Method

    Input

    Analysis

    Main application

    Software Availability

    Servers and Databases

    Refs

    Inter-residue co-evolution

    Mutual Information

    One Large famiy MSA

    Simple inter-position co-evolution

    Protein contacts (model selection for homology modeling)

    Java code (http://www.afodor.net/covariance1_1.zip )

    Coevolution analysis server (http://coevolution.gersteinlab.org/coevolution/)

    1

    Mutual information corrected (Mip)

    One Large famiy MSA

    Inter-position co-evolution without phylogenetic contribution

    Protein contacts (model selection for homology modeling)

    Perl code (Suppl. Mat. Ref)

    2

    McBASC

    One family alignment

    Simple inter-position co-evolution

    Protein contacts (model selection for homology modeling)

    Binary files for every OS (*) & Java code ( http://www.afodor.net/covariance1_1.zip)

    Coevolution analysis server (http://coevolution.gersteinlab.org/coevolution/)

    3

    CAPS

    One small alignment [optional: second alignment or pdb]

    Inter-position co-evolution without phylogenetic contribution

    Protein contacts (model selection for homology modeling)

    Perl code (http://bioinf.gen.tcd.ie/~faresm/software/software.html#caps)

    CAPS server (http://bioinf.gen.tcd.ie/caps/home.html)

    4

    DCA / DCA optimized

    One Large famiy MSA

    Pair specific Inter-position co-evolution

    Protein contacts (ab initio protein structure prediction)

    Matlab code (*)

    5,6

    PSICOV

    One Large famiy MSA

    Pair specific Inter-position co-evolution

    Protein contacts (ab initio protein structure prediction)

    Fortarn & C code (http://bioinfadmin.cs.ucl.ac.uk/downloads/PSICOV/)

    7

    SDPs

    Evolutionary trace

    One family alignment [optional pdb and/or tree]

    SDPs

    Ligand and protein interaction specificity

    C code (http://mammoth.bcm.tmc.edu/downloads.html)

    Evolutionary Trace Server( http://mammoth.bcm.tmc.edu/ETserver.html)

    8

    SDPsite

    One family alignment and a tree

    SDPs

    Ligand and protein interaction specificity

    -

    SDPsite Server (http://bioinf.fbb.msu.ru/SDPsite/index.jsp)

    9

    Mutational behaviour

    One family alignment

    SDPs

    Ligand and protein interaction specificity

  • Binary files for every OS (*)
  • Included in the JDet package: http://csbg.cnb.csic.es/JDet/

  • Treedet Server (http://treedetv2.bioinfo.cnio.es/treedet/index.html)

    10

    Sequence Space

    One family alignment

    SDPs and subfamilies

    Ligand and protein interaction specificity

    Binary files for every OS (*)

    11

    S3det

    One family alignment

    SDPs

    Ligand and protein interaction specificity

  • Binary files for every OS (*)
  • Included in the JDet package: http://csbg.cnb.csic.es/JDet/

  • Treedet Server (http://treedetv2.bioinfo.cnio.es/treedet/index.html)

    12

    SCA-like

    SCAold

    One family alignment

    Conditioned conservation

    Intra-protein pathways (allostery)

    Binary file for Windows (*) & Java code (http://www.afodor.net/covariance1_1.zip)

    13

    SCAnew

    One family alignment

    Subfamily -specific conservation

    Intra-protein pathways (allostery)

    Matlab toolbox (*)

    14

    Inter-protein co-evolution

    MirrorTree

    Two alignments of orhtologous sequences

    Simple Inter-protein co-evolution

    Phyiscal and Functional Interactions

    Binary files for every OS (*)

    MirrorTree Server (http://csbg.cnb.csic.es/mtserver/)

    15

    i2h

    Two alignments of orhtologous sequences

    Simple Inter-protein co-evolution

    Phyiscal and Functional Interactions

    Binary files for every OS (*)

    16

    tol-MirrorTree

    Sequence distance matrixes for two sets of orthologous and for the species tree (16S rRNA tree)

    Inter-protein co-evolution without phylogenetic contribution

    Phyiscal and Functional Interactions

    Binary files for every OS (*)

    17

    ContextMirror

    Evolutionary distances of a big set of groups of orthologs

    Pair specific inter-protein co-evolution

    Phyiscal and Functional Interactions

    Binary files for every OS (*)

    EcID database (http://ecid.bioinfo.cnio.es/)

    18

    MMM

    Sequence distance matrixes for two sets of homologs

    Inter-protein co-evolution of the strngest co-evolving sequence in the alignments

    Phyiscal and Functional Interactions

    Binary files for every OS (*)

    MatrixMatchMaker Web interface (http://www.uhnresearch.ca/labs/tillier/MMMWEBvII/MMMWEBvII.php) MMM-D: database of co-evolving proteins (http://tillier.uhnres.utoronto.ca/MMMD.php)

    19

    Phylogenetic Profiles

    -

    Sequences presence/ absence- associated inter-protein co-evolution

    Phyiscal and Functional Interactions

    -

    STRING database (http://www.string-db.org/)

    20

    References:
    1. Korber, B. T., Farber, R. M., Wolpert, D. H. & Lapedes, A. S. Covariation of mutations in the V3 loop of human immunodeficiency virus type 1 envelope protein: an information theoretic analysis. Proc. Natl. Acad. Sci. U.S.A. 90, 7176–7180 (1993).
    2. Dunn, S. D., Wahl, L. M. & Gloor, G. B. Mutual information without the influence of phylogeny or entropy dramatically improves residue contact prediction. Bioinformatics 24, 333–340 (2008).
    3. Göbel, U., Sander, C., Schneider, R. & Valencia, A. Correlated mutations and residue contacts in proteins. Proteins 18, 309–317 (1994).
    4. Fares, M. A. & Travers, S. A. A. A novel method for detecting intramolecular coevolution: adding a further dimension to selective constraints analyses. Genetics 173, 9–23 (2006).
    5. Weigt, M., White, R. A., Szurmant, H., Hoch, J. A. & Hwa, T. Identification of direct residue contacts in protein-protein interaction by message passing. Proc. Natl. Acad. Sci. U.S.A. 106, 67–72 (2009).
    6. Morcos, F. et al. Direct-coupling analysis of residue coevolution captures native contacts across many protein families. Proc. Natl. Acad. Sci. U.S.A. 108, E1293–301 (2011).
    7. Jones, D. T., Buchan, D. W. A., Cozzetto, D. & Pontil, M. PSICOV: precise structural contact prediction using sparse inverse covariance estimation on large multiple sequence alignments. Bioinformatics 28, 184–190 (2012).
    8. Mihalek, I., Res, I. & Lichtarge, O. A family of evolution-entropy hybrid methods for ranking protein residues by importance. J. Mol. Biol. 336, 1265–1282 (2004).
    9. Kalinina, O. V., Gelfand, M. S. & Russell, R. B. Combining specificity determining and conserved residues improves functional site prediction. BMC Bioinformatics 10, 174 (2009).
    10. del Sol Mesa, A., Pazos, F. & Valencia, A. Automatic Methods for Predicting Functionally Important Residues. J. Mol. Biol. 326, 1289–1302 (2003).
    11. Casari, G., Sander, C. & Valencia, A. A method to predict functional residues in proteins. Nat. Struct. Biol. 2, 171–178 (1995).
    12. Rausell, A., Juan, D., Pazos, F. & Valencia, A. Protein interactions and ligand binding: from protein subfamilies to functional specificity. Proc. Natl. Acad. Sci. U.S.A. 107, 1995–2000 (2010).
    13. Lockless, S. W. & Ranganathan, R. Evolutionarily conserved pathways of energetic connectivity in protein families. Science 286, 295–299 (1999).
    14. Reynolds, K. A., McLaughlin, R. N. & Ranganathan, R. Hot spots for allosteric regulation on protein surfaces. Cell 147, 1564–1575 (2011).
    15. Pazos, F. & Valencia, A. Similarity of phylogenetic trees as indicator of protein-protein interaction. Protein Eng. 14, 609–614 (2001).
    16. Pazos, F. & Valencia, A. In silico two-hybrid system for the selection of physically interacting protein pairs. Proteins 47, 219–227 (2002).
    17. Pazos, F., Ranea, J. A. G., Juan, D. & Sternberg, M. J. E. Assessing protein co-evolution in the context of the tree of life assists in the prediction of the interactome. J. Mol. Biol. 352, 1002–1015 (2005).
    18. Juan, D., Pazos, F. & Valencia, A. High-confidence prediction of global interactomes based on genome-wide coevolutionary networks. Proc. Natl. Acad. Sci. U.S.A. 105, 934–939 (2008).
    19. Tillier, E. R. M. & Charlebois, R. L. The human protein coevolution network. Genome Res. 19, 1861–1871 (2009).
    20. Pellegrini, M., Marcotte, E. M., Thompson, M. J., Eisenberg, D. & Yeates, T. O. Assigning protein functions by comparative genome analysis: protein phylogenetic profiles. Proc. Natl. Acad. Sci. U.S.A. 96, 4285–4288 (1999).
